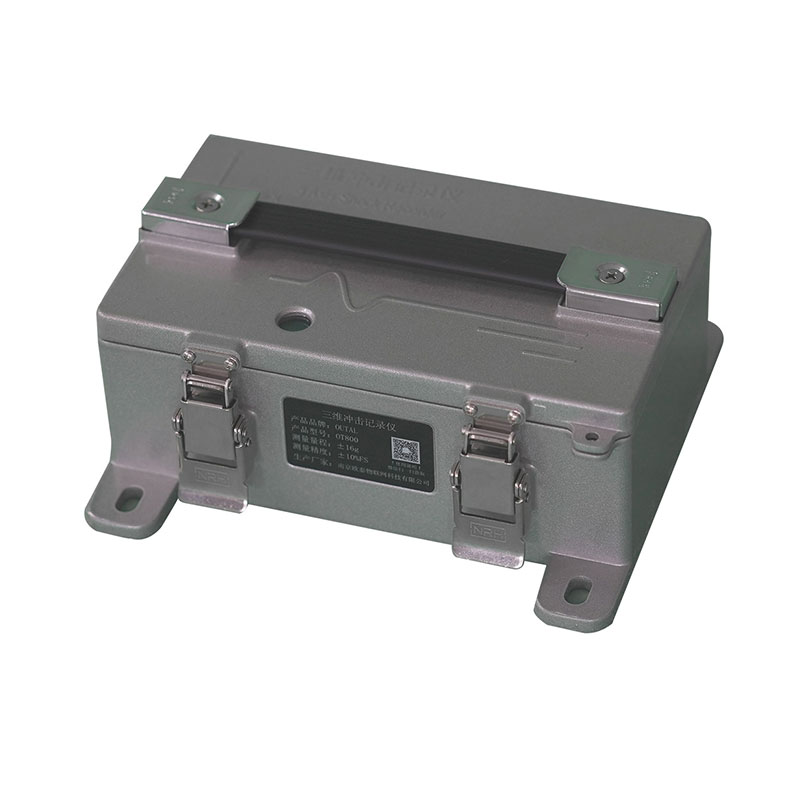

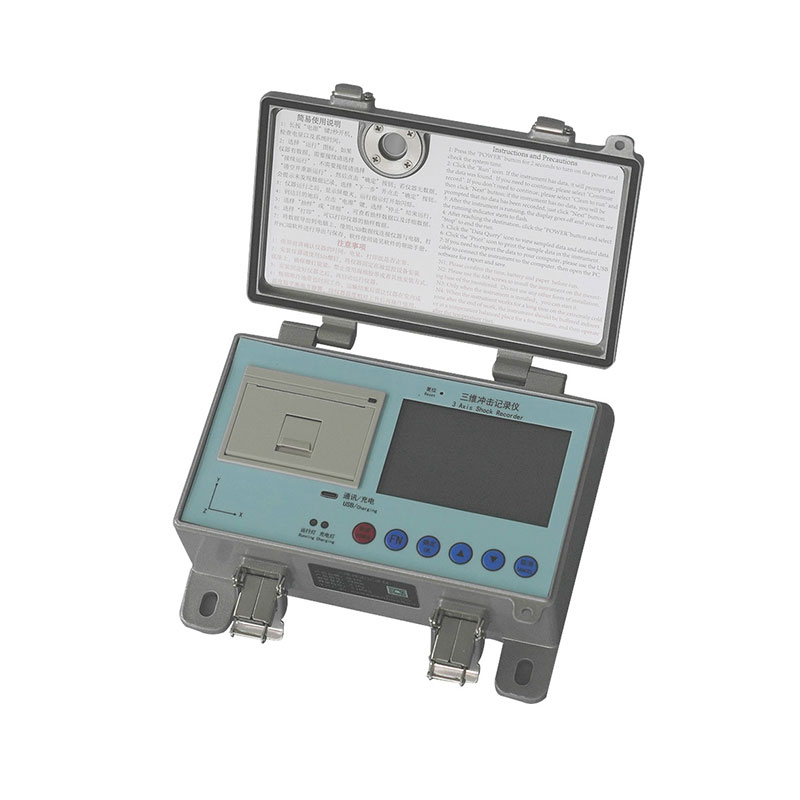

The OT800 Series 3D Impact Recorder is an upgraded version of our SND800 Series 3D Impact Recorder. It is primarily designed for transportation monitoring of power transformers, instrument transformers, high-voltage switches, and other critical equipment. It monitors real-time impact values on transported goods during transit, providing data to assess potential damage upon delivery and ensuring transportation safety.
The OT800 retains all performance and functional features of the SND800 while incorporating optimized design improvements. The device utilizes high-performance metal materials, offering superior resistance to drops, shocks, and deformation. With an IP67 waterproof rating, it meets long-term outdoor operational requirements.
Featuring a low-power design and a built-in lithium-ion battery, the OT800 can operate continuously for up to 300 days on a full charge.
Technical Parameters

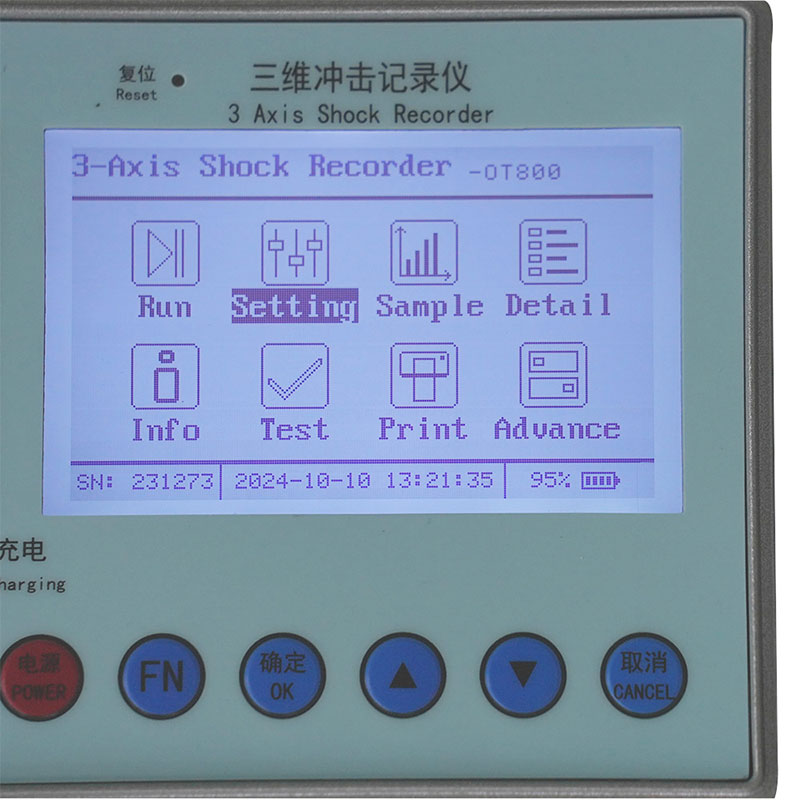

| Interface Language | Chinese/English |
| Storage Mode | Power-off saveable Flash memory |

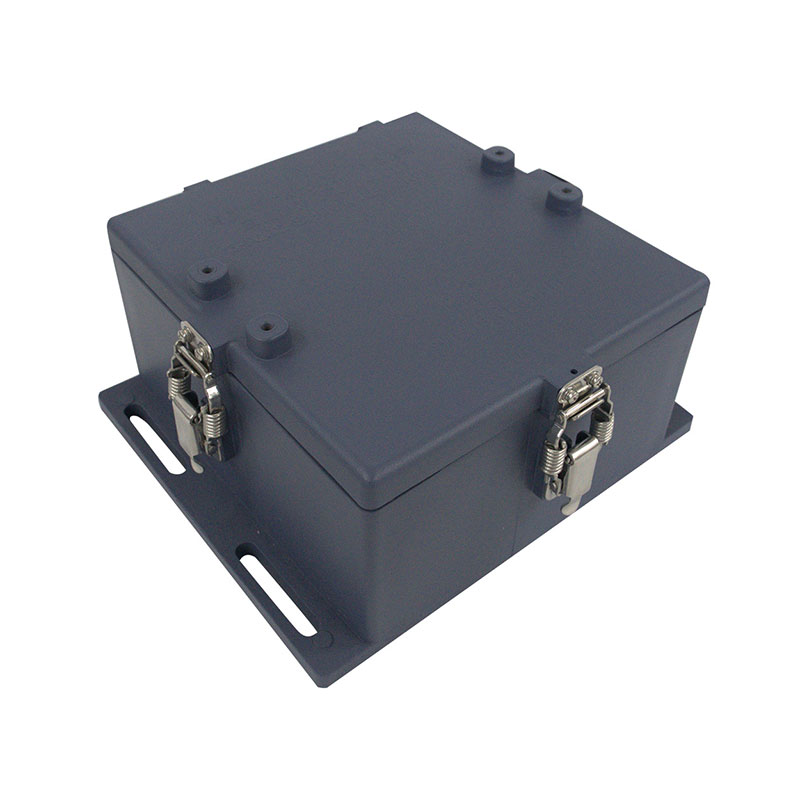

| Housing Material | Metal |
| Impact Measurement Axes | X, Y, Z triaxial |

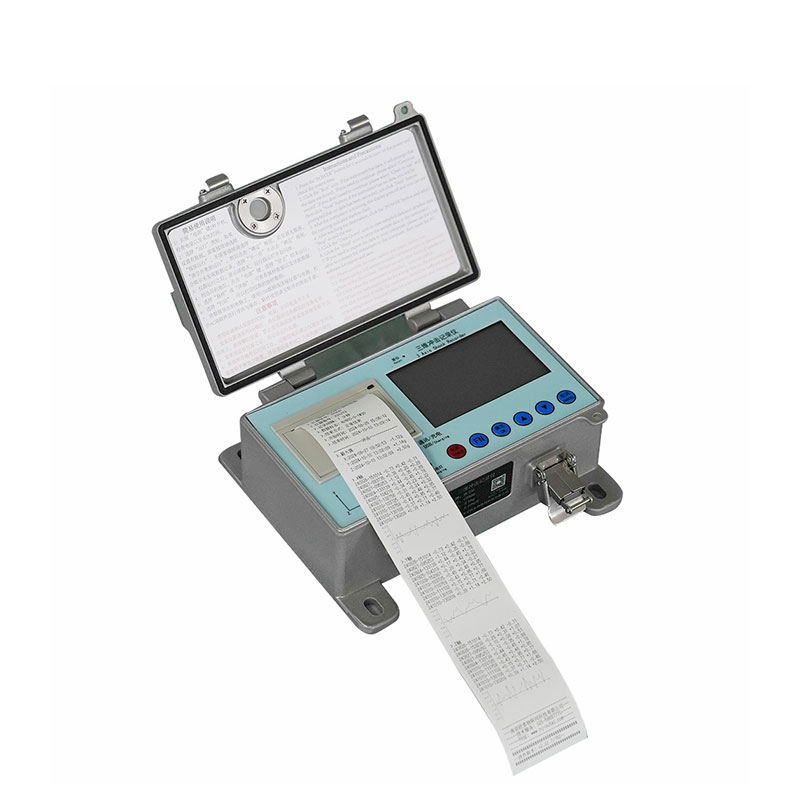

| On-site Printing | Supported |
| Waterproof Rating | IP67 |
| Impact Measurement Range | ±16g |
| Recording Interval | Adjustable (1 - 5 minutes) |
| Weight | ~2.4kg |
| Impact Resolution | 0.01g |
| Full-Charge Runtime | ~300 days |
| Charging Time | <12h |
| Impact Measurement Accuracy | ±10% FS |
| Battery Lifespan | 3 - 5 years |
| Charging/Communication Port | USB Type-C |
| Sampling Frequency | 1kHz |
| Operating Temperature | -40~80℃ |
Q1: Can I request samples?
A: Yes. Samples are available in limited quantities. Shipping and related costs will be covered by the requester.
Q2: Can I use my own logo or design on the products?
A: Yes. We offer OEM/ODM services. Your logo and design can be customized on the products.
Q3: Do you have your own factory?
A: Yes. Our factory is located in Nanjing, Jiangsu Province. You are welcome to visit our company and facility. We are a high-tech enterprise specializing in the R&D, production, sales, and service of IoT instruments and meters, backed by years of industry experience and technical expertise.
Q4: What are the advantages of your products?
A: Our products offer the following advantages: high precision, excellent stability, user-friendly operation, long service life, energy efficiency, and comprehensive after-sales support.
Q5: When will my order be shipped?
A: All products are in stock. Shipments will be arranged promptly after order confirmation.
Q6: Do you provide technical support?
A: Yes. We offer full-cycle remote technical support, including product selection guidance, installation and debugging assistance, and user training.
