| Quantity: | |
|---|---|

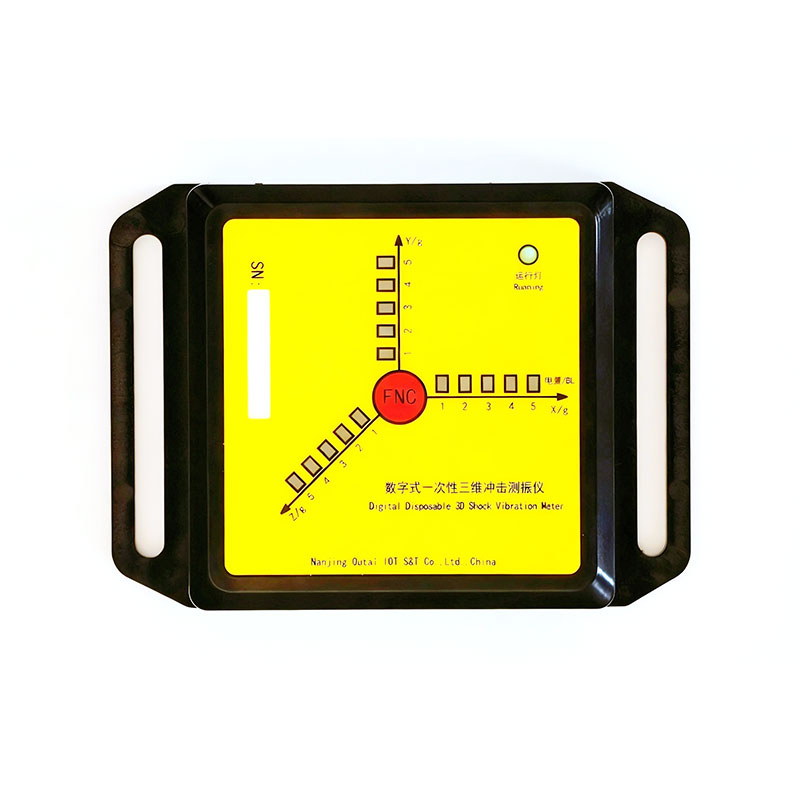

Product Name | Digital Disposable 3D Shock and Vibration Recorder |
Origin | Nanjing, China |
Model | OT100 |
Operating Voltage | 3.7 V |
Operating Temperature | -40℃ ~ 80℃ |
Battery Capacity | 2000 mAh / 7.4 Wh |
Battery Life (Operation) | 90 days |
Measurement Direction | X, Y, Z (3-axis) |
Measurement Range | ±16 g |
Accuracy | ±10% FS |
Sampling Frequency | 200 Hz |
Display Mode | LED indicator lights |
Housing Material | ABS |
Waterproof Rating | IP65 |
Device Weight | 84 g |

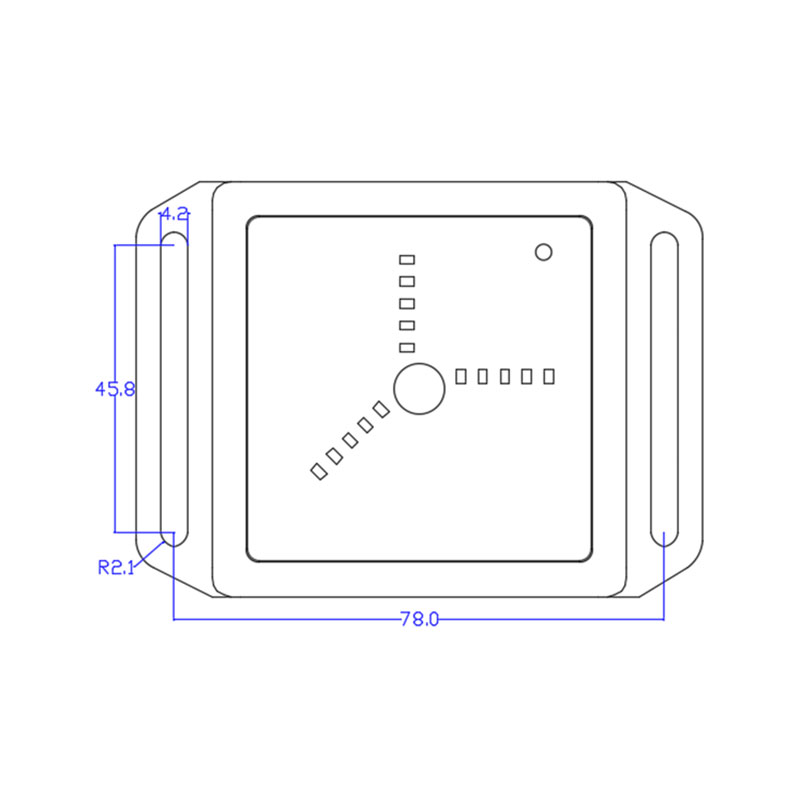

Dimensions (L×W×H) | 90 mm × 66 mm × 17 mm |
LED Indicator Instructions
LED Indicator | Shock Absolute Value Range |
“1” Blinking | [0, 1) g |
“1” Solid | [1, 2) g |
“2” Solid | [2, 3) g |
“3” Solid | [3, 4) g |
“4” Solid | [4, 5) g |
“5” Solid | [5, 16) g |
For single-use transportation tasks (such as sample shipping, prototype delivery, or one-time project cargo), a reusable impact recorder may be unnecessary and costly. The Digital Disposable 3D Shock And Vibration Recorder OT100 is a compact, affordable solution designed for these scenarios. It is pre-calibrated, ready to use out of the box, and requires no charging or complex setup. Once the transportation is complete, users can easily read the data via a USB port or mobile APP, then dispose of the device (environmentally friendly material). With its small size and low cost, the OT100 is ideal for businesses, research institutions, and individuals who need occasional impact monitoring.
The OT100 is factory-calibrated and pre-configured with standard impact (±5g to ±100g) and vibration (1Hz to 300Hz) thresholds. Simply remove the protective film to activate the device—no buttons, no setup, no technical skills required. This saves time and eliminates the risk of user error.
With a size of 50×30×15mm and weight of only 20g, the OT100 can be attached to small packages (e.g., envelopes, small boxes) or inserted into product packaging. It does not add extra volume or weight to the cargo, making it suitable for shipping small items like medical samples, electronic prototypes, or artworks.
After transportation, connect the OT100 to a computer via USB (no drivers needed) or scan the QR code on the device with a mobile phone to view data (impact magnitude, time, duration). The device is made of recyclable PP material (compliant with RoHS standards) and can be recycled after use—no environmental pollution.
Perfect for research institutions and startups shipping samples (e.g., medical samples, chemical reagents) or product prototypes to partners or testing labs. The OT100 provides proof of whether the sample was damaged by shock during transit, helping avoid disputes over sample integrity.
Used by e-commerce sellers (e.g., luxury goods, fragile crafts) for one-time delivery to customers. It allows sellers to prove that the product was in good condition when shipped, reducing return disputes caused by transportation damage.
Suitable for construction companies or event organizers transporting temporary cargo (e.g., stage equipment, exhibition materials) for a single project. The OT100’s low cost means no upfront investment in reusable equipment, reducing project expenses.
A1: It has a built-in non-rechargeable lithium battery that supports continuous recording for up to 30 days. If the transportation takes longer than 30 days, please contact us to customize a version with extended battery life.
A2: The standard version has fixed thresholds (5g for mild impact, 50g for severe impact). For customers with specific needs (e.g., higher/lower thresholds), we offer custom configurations—simply specify your requirements when ordering.
A3: Yes. The OT100 uses a high-quality MEMS sensor with a measurement accuracy of ±2g for impact and ±5% for vibration. It is factory-tested to ensure compliance with ISO 10816-3 standards for vibration measurement. Each device comes with a test report to guarantee data reliability.
