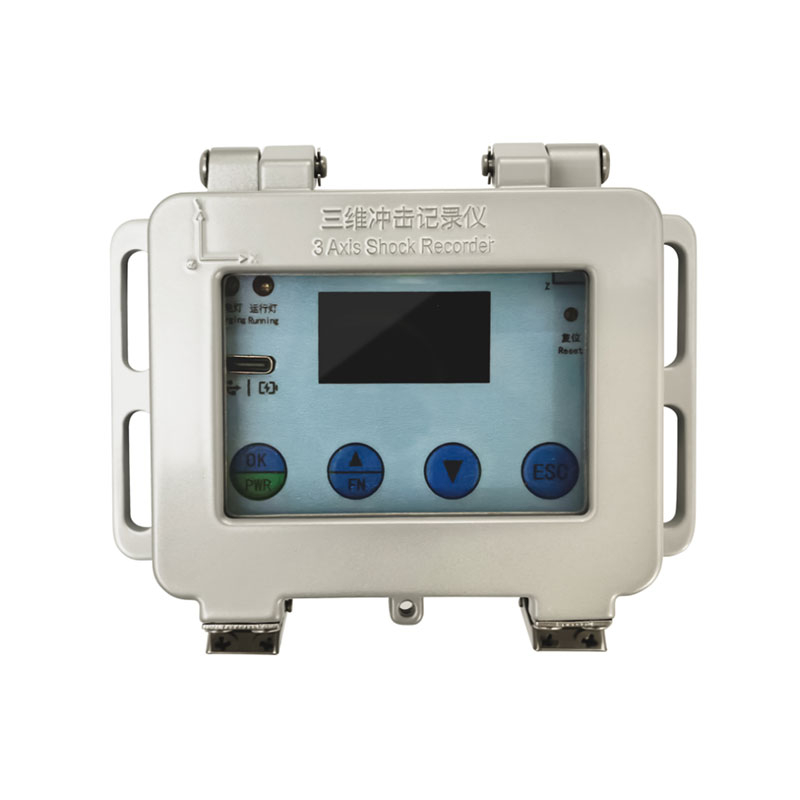

During transportation, fragile goods (such as precision instruments, medical equipment, and electronic components) are often at risk of damage due to unexpected impacts, drops, or vibrations. The Intelligent 3D Impact Recorder OT500 is a portable, user-friendly monitoring device that tracks three-axis (X/Y/Z) impact force, vibration frequency, and duration in real time. Unlike traditional single-axis recorders, it captures 360° motion data, providing a comprehensive view of the transportation environment. With built-in data storage and wireless transmission, it helps logistics teams, manufacturers, and distributors identify damage causes, optimize packaging, and reduce loss rates.
| Impact Measurement Directions | X, Y, Z |
| Impact Measurement Range | ±16g |
| Impact Resolution | 0.01g |
| Impact Measurement Accuracy | ±10% FS |
| Sampling Frequency | 50Hz - 1 kHz |
| Storage Mode | Non-volatile Flash memory |
| On-site Printing | Supported (Bluetooth printer optional) |
| Charging/Communication Interface | USB Type-C |
| Recording Interval | Adjustable, 1 - 5 minutes |
| Battery Life (Operation) | ≥180 days (full charge) |
| Battery Lifespan | 3 - 5 years |
| Charging Time | < 7 hours |
| Operating Temperature Range | -40℃ to +80℃ |
| Enclosure Material | Metal |
| Waterproof Rating | IP67 |
| Weight | 500 g |
The OT500 uses a high-sensitivity MEMS accelerometer to monitor impact forces ranging from ±1g to ±200g and vibration frequencies from 0.1Hz to 500Hz. Its sampling rate reaches 1000Hz, ensuring no subtle impact or vibration event is missed—critical for protecting ultra-precision equipment.
Users can set custom impact/vibration thresholds via the device’s touchscreen or mobile APP. When the threshold is exceeded, the OT500 triggers an audible and visual alarm (red LED light + 80dB beep) in real time. It also automatically generates intuitive data reports (including time stamps, impact magnitude, and location) that can be exported as PDF/Excel files for analysis.
The recorder’s shell is made of rugged PC+ABS material, with an IP65 protection rating. It can withstand rain, dust, and low-temperature environments (-20°C to +60°C), making it suitable for road, sea, and air transportation.
Perfect for monitoring the transportation of fragile goods: medical imaging equipment (e.g., X-ray machines, ultrasound scanners), industrial lasers, electronic semiconductors, and luxury goods (e.g., watches, artwork). It helps logistics companies prove whether damage occurred during transit and avoid disputes with customers.
Used to track the impact and vibration of aircraft components (e.g., engine parts, avionics) during manufacturing, storage, and shipping. It ensures compliance with strict aerospace industry standards (e.g., AS9100).
Applied in automotive R&D and production: monitoring the impact resistance of car parts (e.g., windshields, batteries) during prototype testing and transportation. It helps automakers improve product durability.
A1: It is equipped with a 2000mAh rechargeable lithium battery. In standard mode (continuous monitoring + 10-minute data upload intervals), it supports up to 30 days of continuous operation. In low-power mode (monitoring + 1-hour upload intervals), the battery life extends to 60 days.
A2: Yes. The OT500 supports Bluetooth 4.0 and Wi-Fi connections. Download our free "OT Impact Monitor" APP (available for iOS and Android), pair the device with your phone, and you can view real-time impact/vibration data, set thresholds, and export reports.
A3: Extremely easy. It comes with strong 3M adhesive tape and a mounting bracket. Simply stick the tape to the back of the recorder, attach it to the surface of the goods or packaging, or use the bracket for fixed installation. No professional tools or technical skills are required.
